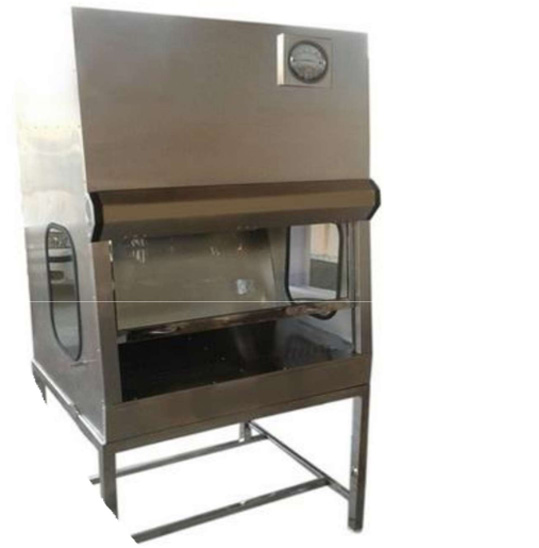

Bio Safety Cabinet is designed to provide both
a clean work environment and protection to
operators who work with biological hazards. It
has vertical laminar airflow to create a barrier
to airborne Particles and microorganisms. High
Efficiency Particulate Air (HEPA) filters are used
to provide clean air in the work area as well as
to the environment through exhaust with the
HEPA filters. The air in the cabinet is re-
circulated over the work area through the
HEPA filter, it is a contaminant-free
environmental protection.
Bio Safety Cabinet range includes a variety of
containment products to suit laboratory
applications within the academic,
pharmaceutical biotech, healthcare, R&D and
industrial sectors.
Supply Filter : Imported Miniplate HEPA filter with hot melt technology, which conforms to EU-14 Grade at supply position with an efficiency rating better than 99.999% for 0.3μ.
Exhaust Filter : Imported Minipleat HEPA filter with hot melt technology, which conforms to EU- 14 Grade at supply position with an efficiency rating better than 99.999% for 0.3μ
Motor Blower Assembly : Motor Blower designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirement for entire life of HEPA.
Differential Pressure Gauge: Dwyer Make Magnehelic Gauge (0-25mm: 2 Nos.)to monitor pressure drop across HEPA & work area with respect to ambient
Work Table : SS 304 worktable perforations at front & back which can be removed occasionally for cleaning purposeDoor Alarm : Alarm triggers in case front door is raised more than 8’’ (i.e. safe clear door during operation)
Electrical Supply : 230V AC 1- 50 HZ / 415V AC 3-50HZ
