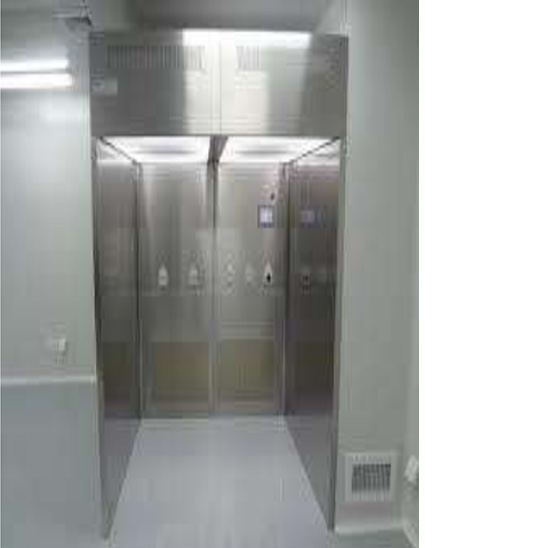

RLAF
- Reversed Laminar Air flow unit operates on a re-circular airflow principle providing containment by air movement. The pre filters at the base of the rear wall capture the airbone containments generated. Intake velocity at ore-filters increases to ensure scavenging effect. A small percentage of air is discharged from the booth through the bleed exhaust. HEPA filter to maintain the working space under negative pressure.
| Working Size : | 4x4x6 , 5x5x6 ( other size as per requirement) |
| Filter : | Supply – Imported Miniplate HEPA filter
with 99.999% down to 0.3μ Exhaust – Imported Miniplate HEPA filter with 99.999% down to 0.3μ |
| Motor Blower Assembly : | Motor blower designed of statically and dynamically balanced for supply of sufficient capacity and static pressure to take care of airflow requirement for entire life of HEPA. |
| Lighting : | Fluorescent light (250 lux) at work surface. |
| ON / OFF Switches : | SS ON / OFF switches for motor & light. |
| Switch Socke : | 6 / 15 amp single-phase switch socket use for external equipment. |
| Control Panel : | Electrical control panel mounted on side panel of the unit. |
| DOP port : | DOP test port at upstream of HEPA filter to personnel for carrying out the HEPA integrity test (with PAO solution). |
| Electrical Supply : | 230 V AC 1-phase 50 Hz / 415V AC 3-phase 50 Hz |
| Noise level : | Less than 67 dB on scale ‘A’ when ambient is not greater than 55 dB on scale ‘A’. |
