HVAC Systems

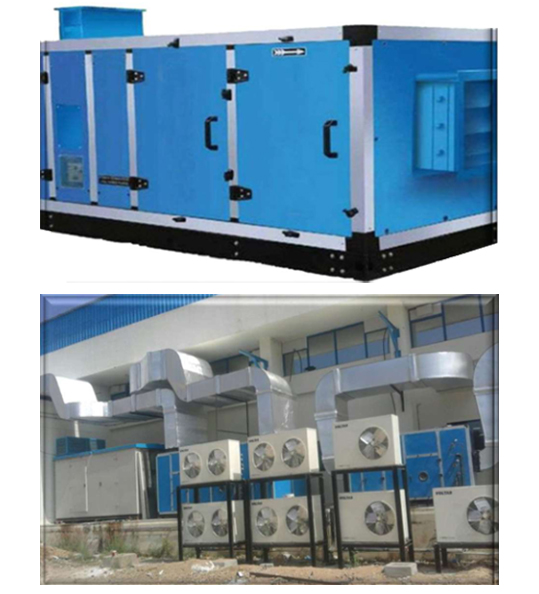

- We manufacture AHU which are compact, silent, light weight, low power consumption, vibration free, free from cross-contamination and excellent performance.
- Design concept provides the flexibity to meet the rising demand of having good air quality with technology based on guideline of Schedule-M, US-FDA, UK-MHRAC, FED Std-290E, ISO 14644.
- Application - Pharmaceuticals, Packaging, Electronics, Food manufacturing Units, Hospitality and Labs.

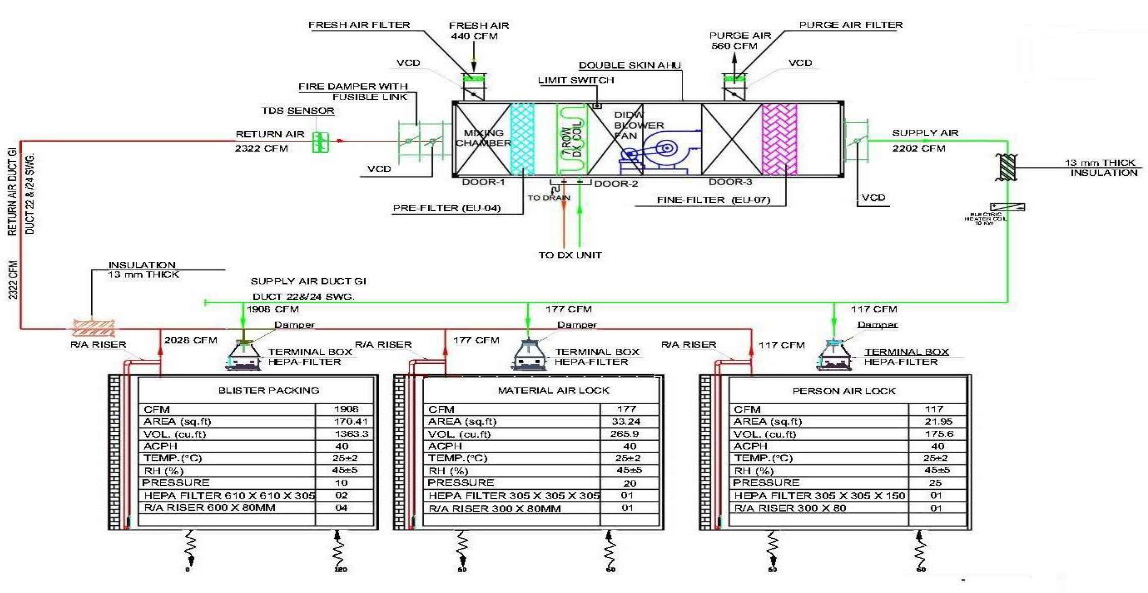

- Body – 25 mm / 50 mm double skinned structure complete with mixing chamber, pre-filters, fine filter, micro vee filter section with filters suitable for filtration down to 0.3-micron, coil section (DX/CHW) squirrel cage 3 phase motor, blower, fresh air damper, return and supply air damper
- Air Flow Range – 600 CFM to 32000 CFM
- Pressure Range 0.1 to 1.5 K Pascal
- Panel ( Inner ) : 0.8 mm (Pre-coated GI Sheet)
- Panel (Outer ) : 0.6 mm ( Pre-coated GI Sheet)
- Frame : 1.2 mm Al-sec (Thermal Break Profile / Non- Thermal Break Profile)
- Inner Surface : Sanitary Design, Rust proof, Smooth Surface
- Section : Mixing, Pre filter, Fan, Exhaust, Coils, After Filter
- Access Door : Food grade Gasket Neoprene, Hinges Al., Glass peep hole.
- Panel Thickness : 25mm / 50 mm
- Base frame 100 mm GSS channel.
- Condensate Pan : 1.0 mm Thick SS 304 insulated with 30 / 40 mm
- Drain Connection : Provision
