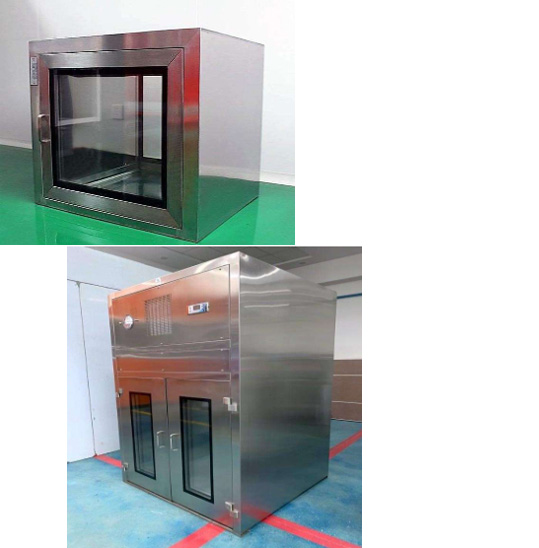

Dynamic & Static Passbox
- DYNAMIC PASSBOX : Dynamic passboxes are used as buffer area to avoid any type of contamination during transfer material from unclassified area to classified area or wise versa. They are provided with mechanically or electrically interlocked door and UV light. These dynamic passbox equipped with suction filter made of stainless steel with 95% down to 5-micron efficiency (EU- 4 Rating) and supply filter made of Aluminum with 99.99% down to 0.001 micron (EU – 14 Rating).
- STATIC PASSBOX : Static passboxes are used to transfer material across the having different classification of air to avoid cross contamination. They are provided with mechanically or electrically door interlocking system and UV light. Precision, designing & finishing.
- Interlocking : Mechanical / Electromagnetic
Indicating lamp to know the door interlock condition. Magnehalic gauge for measuring pressure drops (Only for dynamic passbox).
Floor and wall mounted design - Construction : SS304 / SS316
- Window : Polycarbonate Sheet (Accessories : Electrical Hour meter, Flurocent light, UV light, Buzzer and indicator lamps.
- HEPA Filter : Optimal Filtration efficiency ≥99.99% @ >0.3 μ (For dynamic Passbox)
- Power Supply : 220 – 230 V
- Working size : 1.5 x 15. x 1.5 ft / 2x2x2 ft / 3x3x3 ft/ custom size as per client requirement
